Robotic Case Packer
Application:
Accurate positioning, no damage to packaged products,neat and efficient cartoning; with memory function，noprogramming requirment to replace product; modulardesign with small footprint, easy for workshop arragement.
Robotic Case Packer
The Robotic Case Packer is designed for high-precision and efficient secondary packaging. It features accurate positioning to ensure no damage to packaged products, delivering neat and consistent cartoning results. With a built-in memory function, products can be changed without programming, making the system highly flexible for multi-product production environments.
Thanks to its modular design and small footprint, the robotic case packer is easy to integrate into existing workshops and production lines, helping manufacturers optimize space utilization while improving overall packaging efficiency.
Main Content
Robotic Case Packer Overview

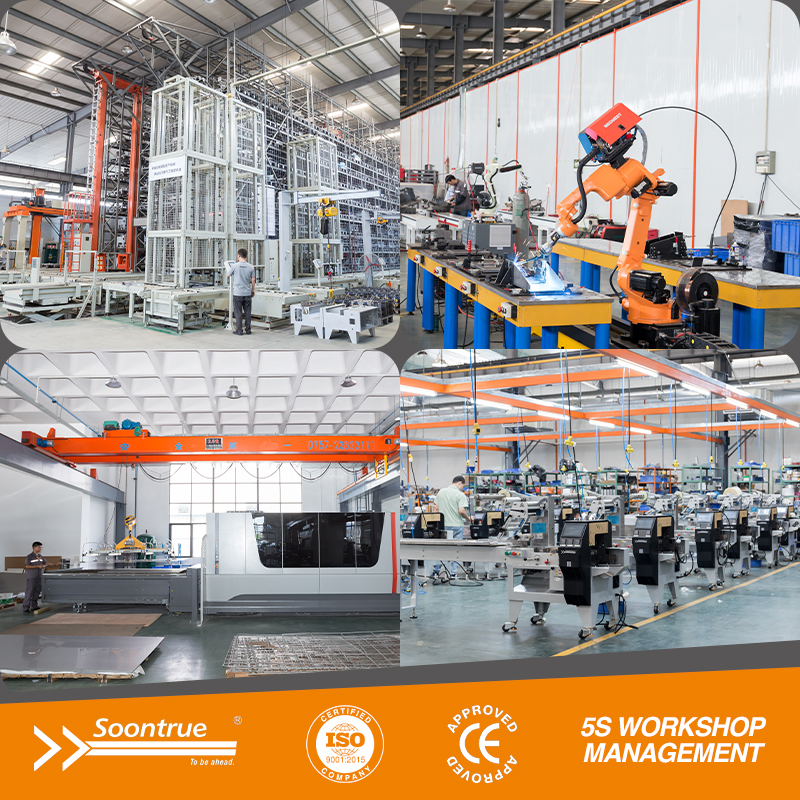

Since 1993, Soontrue has been a domestic leader in the design and production of packaging machinery. Backed by a professional team of over 100 engineers and technicians, strong R&D capabilities, and extensive industry experience, Soontrue continues to expand its automatic packaging solutions to meet evolving market needs.

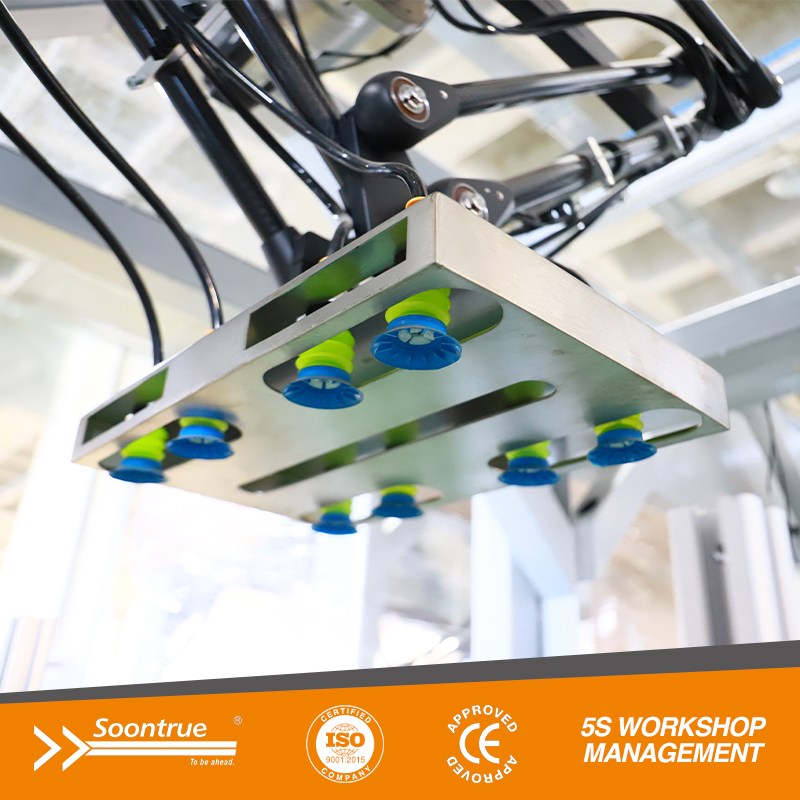

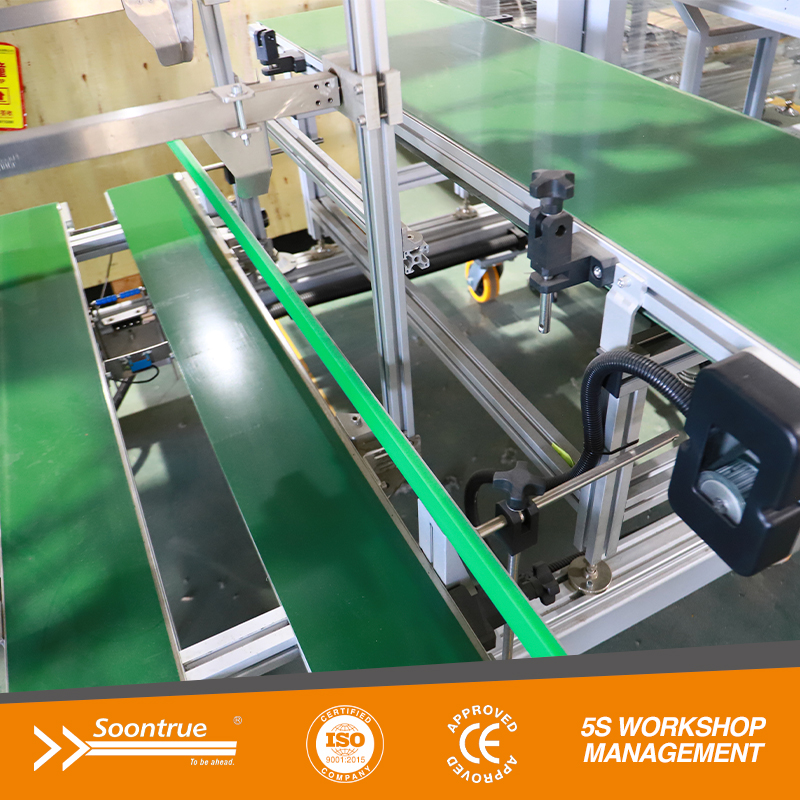

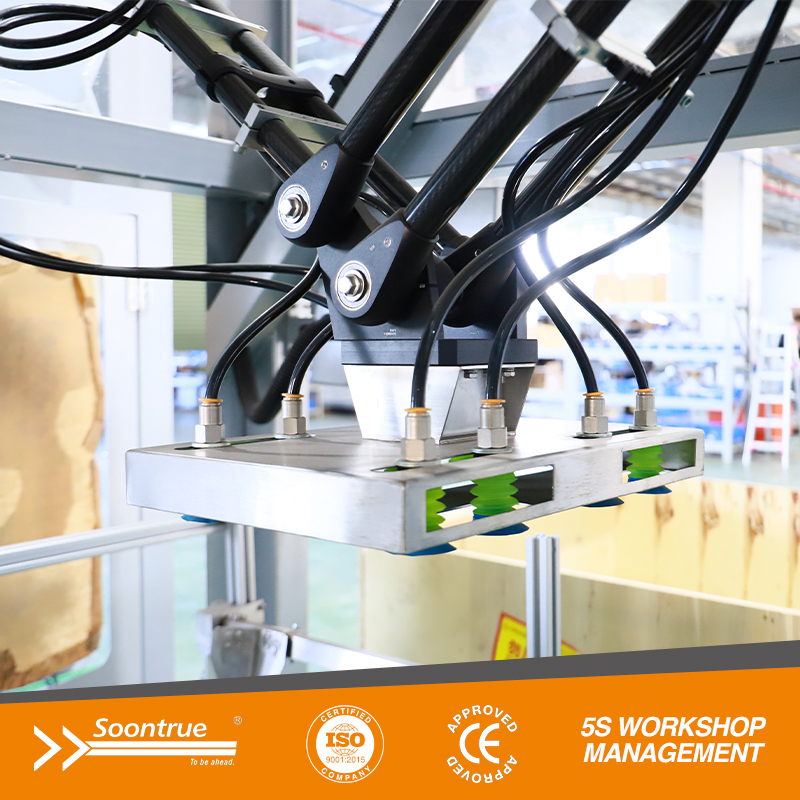

The robotic case packer can be conveniently connected to the out-feed conveyor of the packaging machine and the carton erecting machine, forming an efficient and automated cartoning process. Equipped with a three-plus-one-axis manipulator, the system enables movement and rotation in three-dimensional space. It supports quick-follow operation with the conveyor belt and ensures precise pick-up and placement of products.
By accurately and smoothly completing the cartoning process, this robotic case packing solution is widely used in food, daily necessities, chemical, and other industries that require stable, flexible, and reliable secondary packaging.
Robotic Case Packer Features
- Accurate positioning to protect packaged products from damage
- Neat and efficient cartoning performance
- Memory function allows product replacement without programming
- Three-plus-one-axis manipulator enables simultaneous movement and rotation
- Automatic adjustment of product orientation during pick-and-place
- Modular design with a compact footprint for easy workshop arrangement
- Suitable for integration with various upstream and downstream packaging equipment
FAQ
Q1: Do products need to be placed on the conveyor belt in the same direction?
Answer: No. The three-plus-one-axis manipulator can move and rotate products simultaneously. It automatically adjusts the product orientation and accurately places items into the carton box.
Q2: I'm worried that I don't know how to operate your machine.
Answer: Do not worry. Our cartoner is servo controlled, which greatly simplifies operation and commissioning. Most daily operations can be completed using start-stop buttons and the HMI. Instructional videos are also available for step-by-step guidance if needed.
Q3: If I buy your carton packing machine, what technical support can I get?
Answer: We provide 24-hour online technical support. Instructional videos for installation, daily commissioning, and maintenance are also available. For customized automatic packing lines with carton box packing machines, on-site installation and commissioning services can be arranged upon request (buyer bears the service cost).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win partnership is built on professional service and high-quality products. Our team will carefully study your requirements and clearly explain our solutions. Factory visits via video call are available, and factory acceptance tests can be carried out before delivery through on-site testing, test videos, or live video calls to ensure the machine is ready for shipment.
Q5: How can I find the suitable automatic box packing machine I need?
Answer: We will fully communicate with you regarding product and packaging details, such as size, packing method, and material characteristics. With nearly 30 years of manufacturing experience, we can provide similar case videos for reference. If necessary, we will request product and packaging samples for testing to determine the most suitable and cost-effective solution.
| Model | ZX500R |
| Applications | Compatible with carious of soft or hard packages |
| Cartoning speed | ≤30 gripping/min (optional 40 gripping/min) |
| Gripping range | L 400 x H 300 mm |
| General power | 2.65Kw |
| Compressed air | 0.6 - 0.8 Mpa |
| Machine weight | 480 kg |
| Machine size | 1584 x 1380 x 2100 mm |
| Gripping weight | 5 - 16 kg |
| Power supply | 220v/50Hz |
